Best Manual Multi-Port Valve for Carbon & Sand Filter | Industrial Water Treatment
Original price was: 3,000৳ .2,000৳ Current price is: 2,000৳ .
Manual Multi-Port Valve for Carbon Specification
| Specification | Details |
|---|---|
| Product Name | Manual Multi-Port Valve for Carbon & Sand Filter |
| Connection Size | 1 Inch (Inlet/Outlet/Drain) |
| Max Flow Rate | 4 m³/h |
| Operating Pressure | 1.0 – 6.0 Bar |
| Base Connection | 2.5-inch (8-NPSM) |
| Body Material | High-Density Reinforced ABS Plastic |
| Handle Material | Polished Chrome Alloy |
| Operating Temperature | 4°C – 45°C |
Guaranty: 1 Year

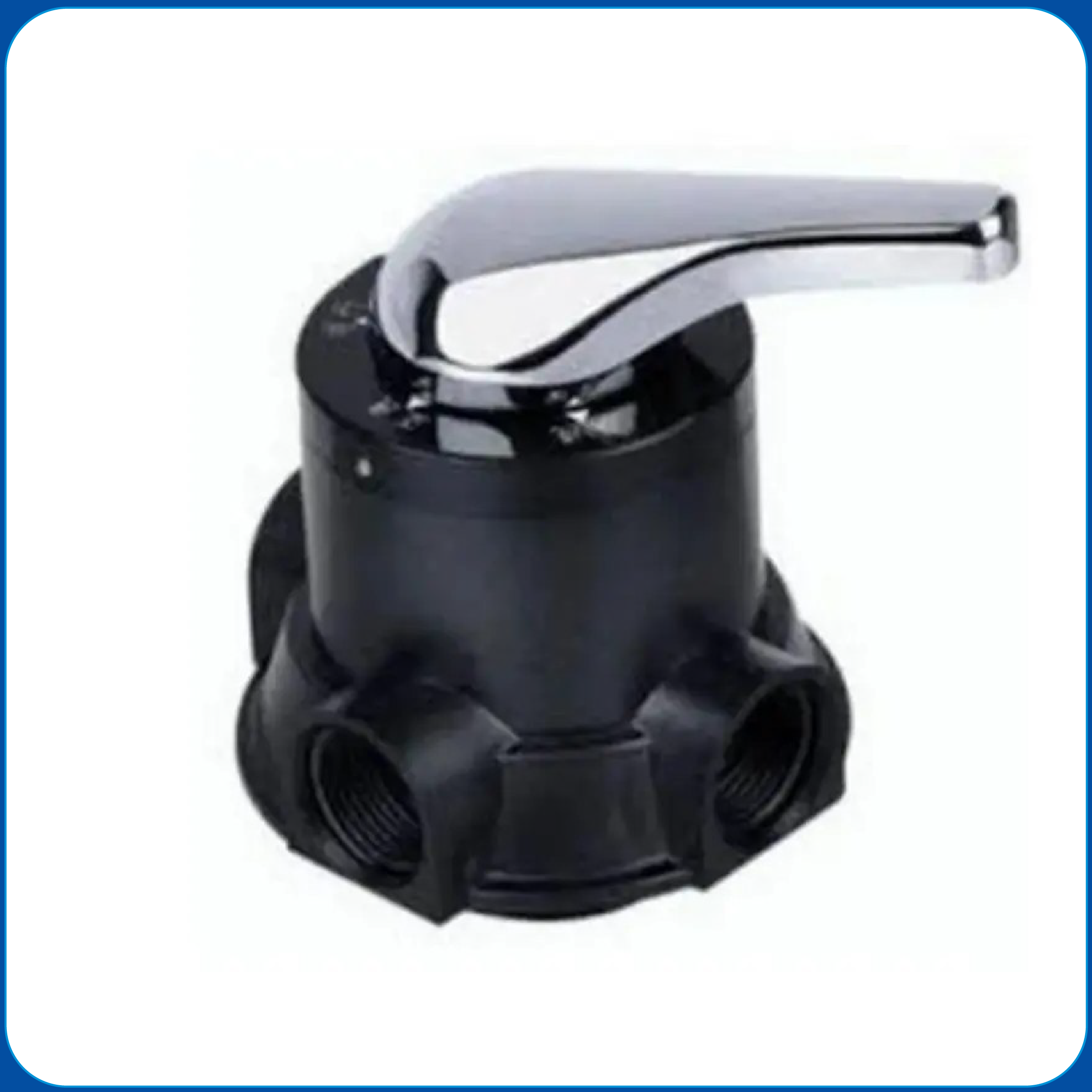

Manual Multi-Port Valve for Carbon & Sand Filter
The Manual Multi-Port Valve for Carbon & Sand Filter is a critical component for maintaining high efficiency in any professional water treatment setup. Whether for industrial, commercial, or residential applications, this valve provides essential control over your water filtration process. Waterella Bangladesh provides this high-quality FRP tank valve, specifically engineered to manage backwash and rinse cycles for carbon, sand, and iron removal filters. Built with durable, corrosion-resistant materials, this valve ensures long-term reliability and exceptional performance in demanding water treatment environments.
Technical Specifications
| Specification | Details |
| Product Name | Manual Multi-Port Valve for Carbon & Sand Filter |
| Connection Size | 1 Inch (Inlet/Outlet/Drain) |
| Max Flow Rate | 4 m³/h |
| Operating Pressure | 1.0 – 6.0 Bar |
| Base Connection | 2.5-inch (8-NPSM) |
| Body Material | High-Density Reinforced ABS Plastic |
| Handle Material | Polished Chrome Alloy |
| Operating Temperature | 4°C – 45°C |
Filtration Process
This Carbon Filter Head operates through three primary stages to ensure water purity:
-
Filter Mode: Untreated water enters the FRP tank, passing through the filtration media (sand or carbon) to remove impurities before exiting as purified water.
-
Backwash Mode: By reversing the water flow, the valve flushes out accumulated sediment, iron, and debris from the media bed.
-
Fast Rinse Mode: This stage settles the media bed and flushes out any remaining particulate matter, ensuring the filter is ready for operation.
Maintenance and Longevity
The durability of our Sand Filter Valve is enhanced by its simple, mechanical design, which minimizes the risk of electronic failure. To ensure maximum longevity:
-
Perform backwashing regularly based on water turbidity.
-
Handle the metal lever gently during mode transitions to avoid mechanical strain.
-
Apply food-grade silicone grease to internal seals annually to prevent leaks.
Features
-
Corrosion-Resistant Body: Constructed from high-density ABS, making it resistant to chemicals and harsh water conditions.
-
Chrome-Plated Metal Handle: Provides superior strength compared to standard plastic handles.
-
Precision Sealing: Equipped with high-quality ceramic moving discs for leak-proof performance.
-
Intuitive Design: Clearly labeled modes for easy operation by any technician.
Why Choose Us – Waterella
Waterella is a trusted name in Bangladesh for professional water treatment solutions and Water Treatment Accessories. Our products adhere to international standards, including NSF International Certification. Our expert team provides end-to-end support for your installation and maintenance needs.
Bangladesh Market Relevance
Given the high levels of iron and manganese in many regions of Bangladesh, our manual valve design is preferred by plant operators over automatic valves that often clog in harsh water conditions. Our solution is cost-effective, durable, and optimized for local industrial and residential Water Treatment Plants.
Related Products
FAQ – Manual Multi-Port Valve for Carbon
Q: What is the main function of this valve? A: It is used to control the three cycles of a filter: Filtration, Backwash, and Fast Rinse.
Q: Is a manual valve better than an automatic one? A: In the context of Bangladesh’s water quality, manual valves are often more reliable as they are less prone to clogging from iron deposits and do not require electricity
Q1: What is a Manual Multi-Port Valve used for?
A: A Manual Multi-Port Valve is used to control water flow in sand filters and carbon filters. It allows users to switch between different functions such as filtration, backwash, rinse, and waste.
Q2: Which filtration systems are compatible with this valve?
A: This valve is suitable for sand filters, activated carbon filters, multimedia filters, FRP vessels, swimming pool filtration systems, and commercial water treatment plants.
Q3: What is the connection size of this Multi-Port Valve?
A: The valve comes with 1-inch inlet, outlet, and drain connections, making it compatible with a wide range of filtration systems.
Q4: What is the maximum flow rate of this valve?
A: The valve supports a maximum flow rate of 4 m³/h, ensuring efficient operation in commercial and industrial applications.
